NYCTALOPE
640 × 480 LWIR thermal camera core for drones
Plug and play.
USB 2.0 video interface. Image enhancement library available. Integrates into your existing UAV architecture.
THERMAL IMAGING
640 × 480 LWIR sensor, 12 µm pixel pitch, NETD ≤ 35 mK. Sees heat signatures by day and by night.
Wide to long range.
Three lenses on the same core: 9 mm, 13 mm or 35 mm, from a 48° to a 12° field of view.
Starting unit price€1,600 excl. VAT
RESOLUTION640 × 480
WEIGHT30 g · 35 g · 60 g
NETD≤ 35 mK
FRAME RATE9–30 Hz
The product
One core, three lenses

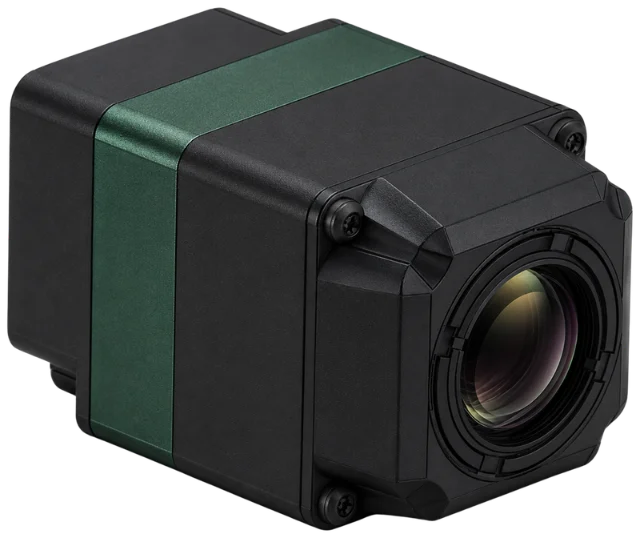

9 mm · wide field
Ultra-compact and ultra-lightweight: the widest view, for navigation and close-range observation.48°Horizontal field of view
30 gWeight
35 × 24 × 24 mmSize
89 mWidth covered at 100 m
13 mm · balanced
The middle ground between field of view and range, in the same compact body as the 9 mm.33°Horizontal field of view
35 gWeight
35 × 24 × 24 mmSize
59 mWidth covered at 100 m

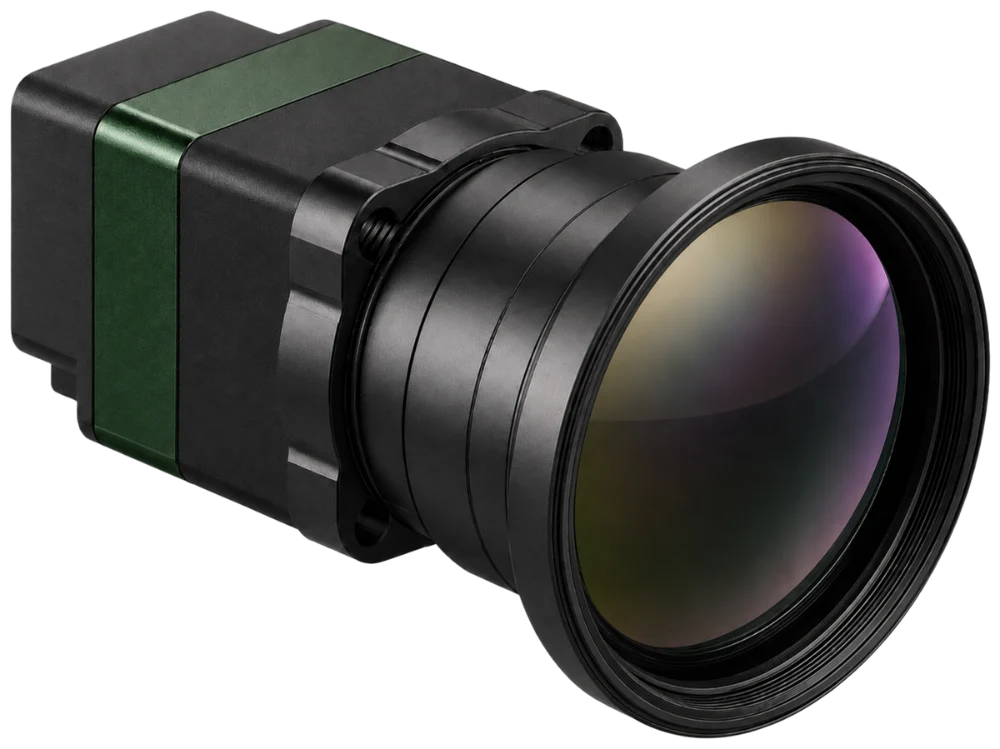

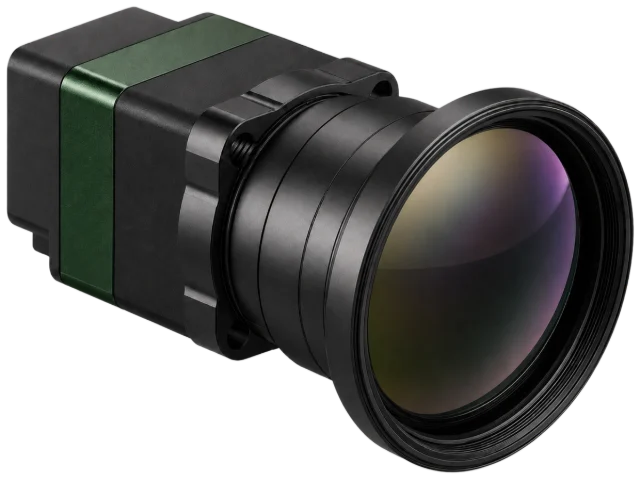

35 mm · long range
A narrow field for long-range imaging: more pixels on a distant target.12°Horizontal field of view
60 gWeight
58 × 24 × 24 mmSize
21 mWidth covered at 100 m
All versions
Request the datasheet- Sensor
- LWIR, 640 × 480, 12 µm pixel pitch
- Sensitivity
- NETD ≤ 35 mK
- Frame rate
- 9–30 Hz
- Interface
- USB 2.0 video, plug and play
- Uniformity
- Mechanical shutter and on-board NUC
- Software
- Image enhancement library available
Integrate NYCTALOPE into your UAV
Discuss your thermal imaging requirements with our team, and evaluate NYCTALOPE on your platform.
